Layout of sand manufacturing plant is similar to Stone crushing plant. It consists of Feeding hopper, Rotopactor, Sand Screen, conveyors / elevators, electrical prime movers and controls, etc. For manufacturing Sand at large scale it is manufactured directly from bigger size stones up to 500 mm size. The feed size of VSI Crusher can be 0 to 40mm. The stone metal of 20mm size can be produced from this feed size. Therefore bigger size stone must be crushed to minus 40mm for feeding in the VSI Crusher. For making sand, for getting more efficiency and less wear the feed size should not be more 15mm.

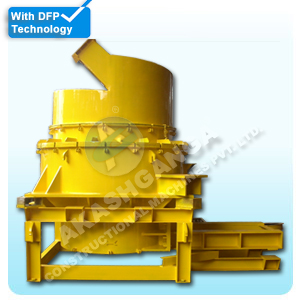

Specially Designed VSI Crusher for High Silica Minerals Is Our Specialty. This Machine Can Crush Quartz, Quartzite, Glass, Sodium Falspar and High Silica Minerals Very Efficiently With Less Wear Cost.
Small machines can be used along with Stone crusher units, Where Grit and fine particles are waste. With Two crushers a 15 ton per hour capacity machine can be installed. |
|
